Max. 14.515 kg

32,5 meter

29,37 meter

Rental Price

Rent With Operator

Total price per hour:

€ 160,-
Price includes the rental of the machine, operator and transport, with a minimum of 3 hours.
Rent Without an Operator

Daily rate:
Weekly rate:
5 weeks or more per week:

Excl. Transport

€ 1.430,-
€ 4.400,-
€ 3.710,-

Prices are excl. VAT

Or call us directly at:

0031 497 57 38 71

  • Always available
  • No Deposit
  • Recent machines
  • Customer service

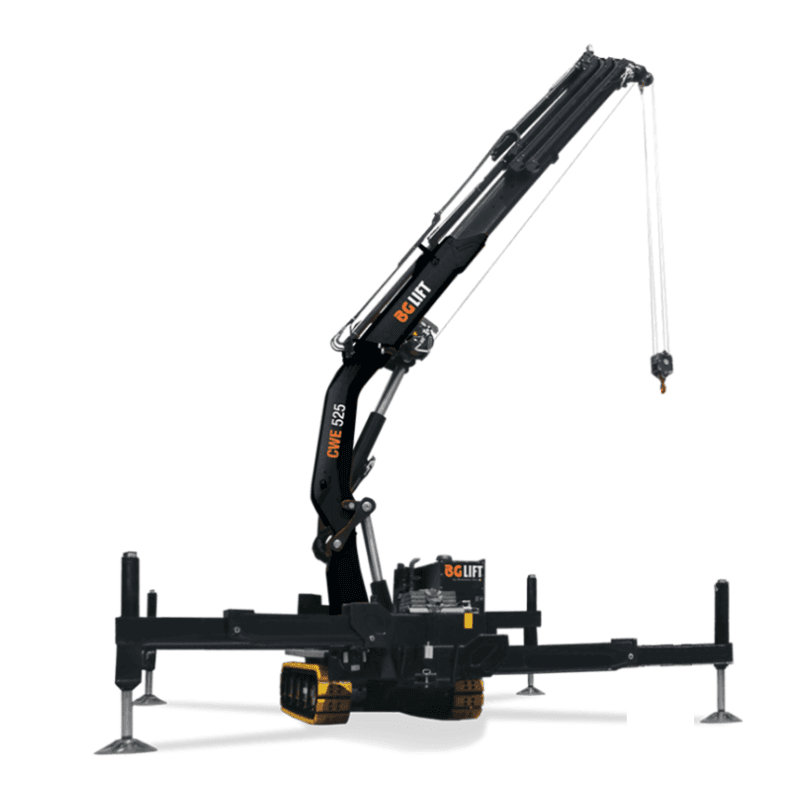

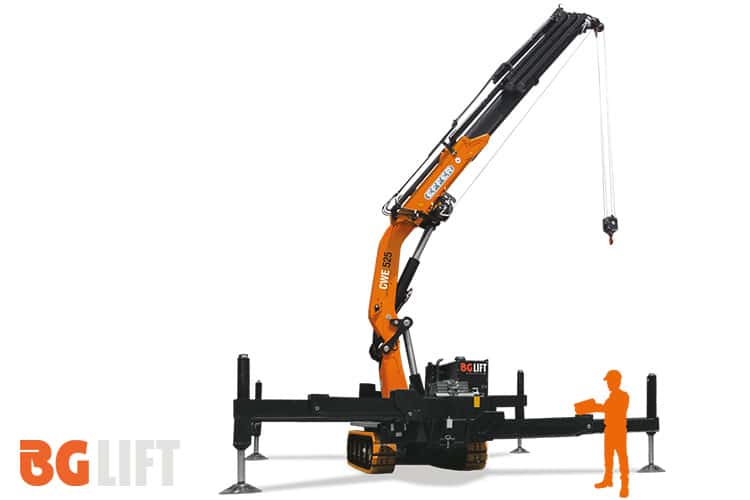

BG LIFT CWE525 Mini Crane

Specifications

  • Highest lifting point: 32.5 m
  • Max. horizontal range: 29.37 m
  • Max. capacity: 14,515 kg
  • Weight: 15,200 kg
  • Max. hydraulic swivel range: Infinite
  • Engine: Yanmar Diesel engine 55 kW
  • Electric motor: 400 V 15 kW
  • Double pump: 240 bar
  • Transport width: 1.85 m
  • Transport length: 5.07 m
  • Transport height: 2.77 m
  • Speed: Approx. 2 km / h
  • Load Moment Protection: Electric

Description

An Exclusive Project of BG LIFT Engineers Team, realized with best materials and Hi-Tech Technologies.
The best possible union between Power and Performance combined to an incredible Compactness, unimaginable until today.
The light dimensions and the millimetric movements manoeuvrability allow to operate in extremely Narrow spaces, normally inaccessible to other cranes of the same class.

Sloping Stabilization

The outriggers of CWE 525 Range, Provided With Cross Beams System, confer to the Crane Chassis an incomparable torsion resistance always keeping extremely Compact the machine Dimensions in rest position.
The outriggers cylinders, solid with extended stroke, Simplify the Crane Endurance on strongly steep grounds.

Load Management

A large Employment of high enervation limit special steels, such as STRENX 1300, allow to limit the weight in order to take advantage of the performance; especially with more external loads on the top of the Jib.

Transport

The generous ground clearance angle permit to load the machine as well on truck with short ramps; simplifying the manoeuvres and optimizing loading time.

“Short ray” Performance

CWE 525 is Built with very low barycentres which, combined to the Cross Beams Geometry, Permit to develop the full power and cover heavy and voluminous loads (Machines Tools and other) operating close to the load in reduced spaces and heights.

Load Limit Stability

The integrated control system give to the Crane infinite Stabilization possibilities, Automatically upgrading the load limiting device to the situation determined by the position of each outriggers; permitting the operator to completely work in safety conditions and, simultaneously, setting configurations unthinkable until today.

Positive Angle for Hard Access

The second Articulated Telescopic Boom and the Hydraulic Jib have angular operating system respectively of 15° and 20° Over the Horizontal alignment of the boom.
This situation allow to operate inside buildings and give the possibility to overcome obstacles such as lofts, front door and Beams.

The Bg Lift CWE525 is:
\
Compact
\
Powerfull
\
Flexible
\
An exclusive project
