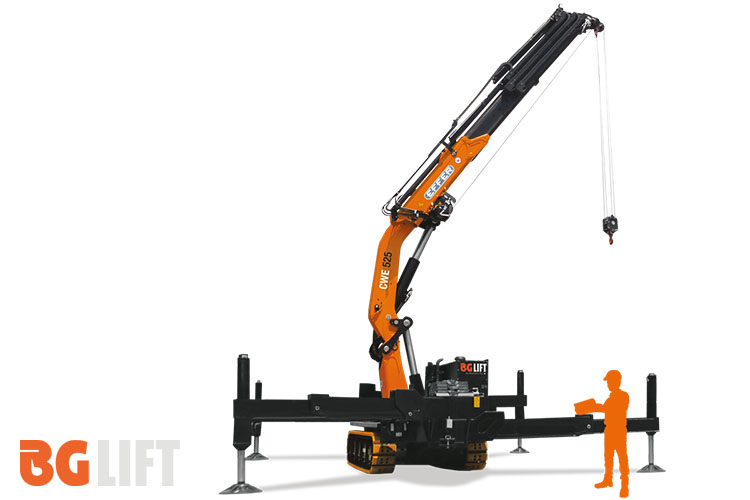

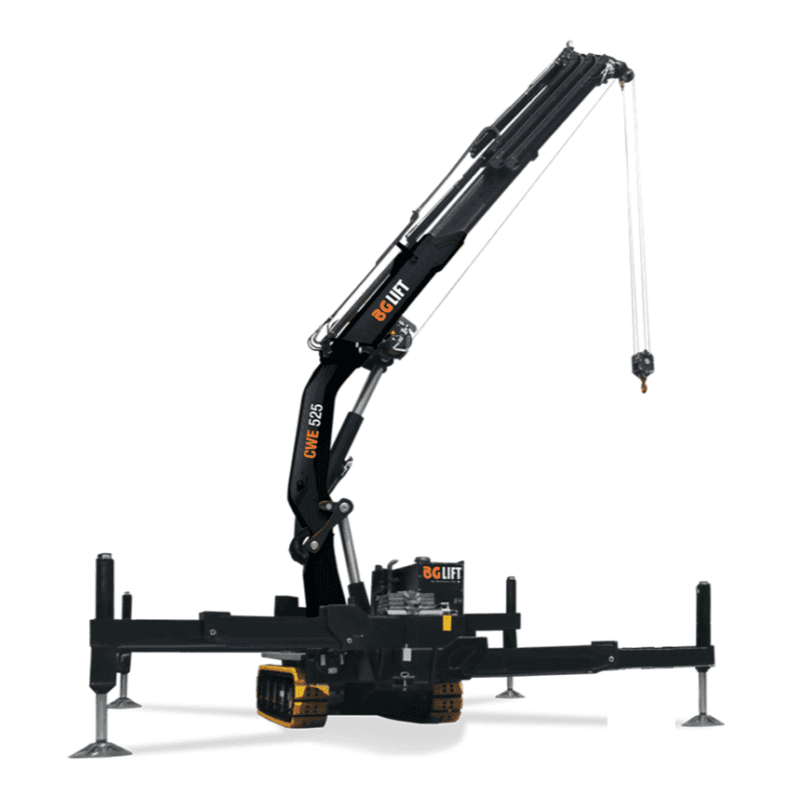

BG LIFT CWE525 Mini crane
- Engine: Yanmar Diesel 55 kW
- Double pump: 240 bar

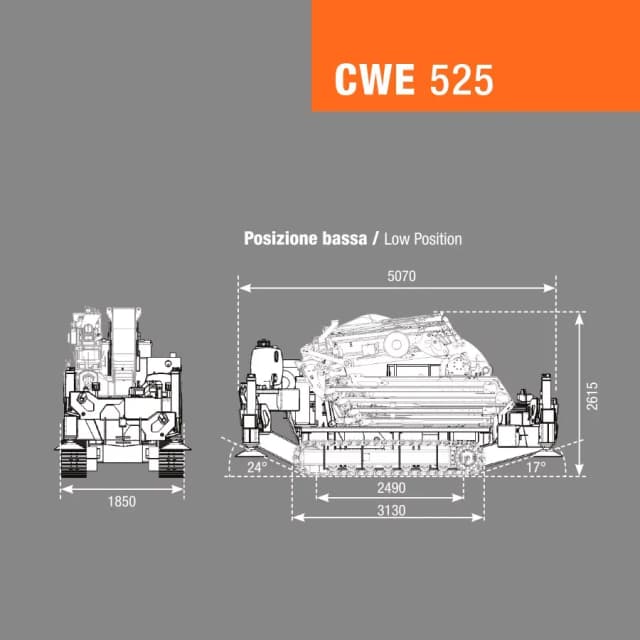

- Transport width: 1.85 m
- Transport length: 5.07 m
- Transport height: 2.77 m
- Transport speed: Approx. 2 km / h
- Load moment protection: Electric

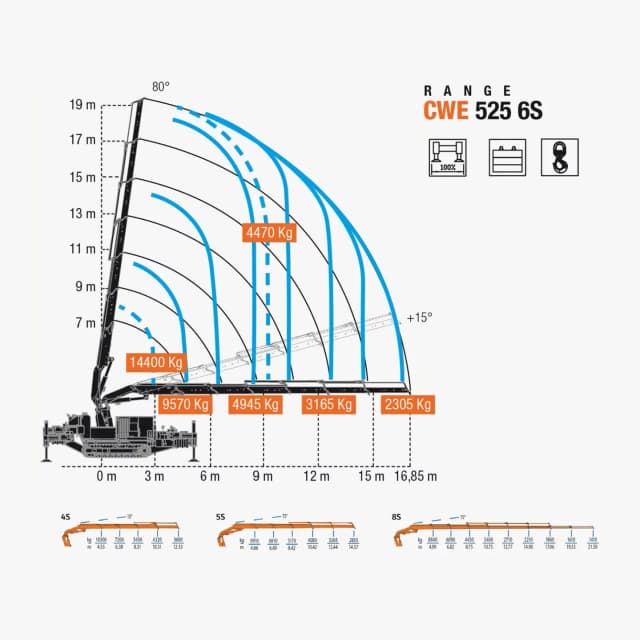

- Max. capacity: 14,500 kg
- Own weight: 15,200 kg
- Max. hydraulic swivel range: Infinite

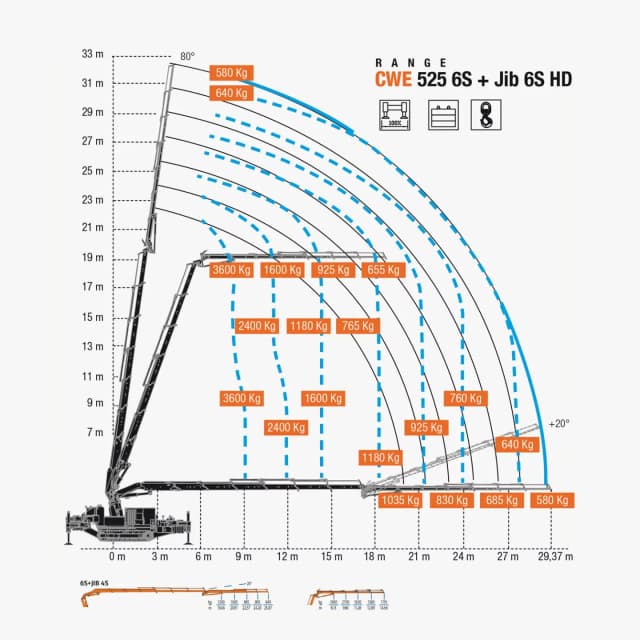

- Highest lifting point: 32.5 m
Available from: € 285.000,-
- Always available
- Fast delivery time
- Customer service
An Exclusive Project of BG LIFT Engineers Team, realized with best materials and Hi-Tech Technologies.
The best possible union between Power and Performance combined to an incredible Compactness, unimaginable until today.
The light dimensions and the millimetric movements manoeuvrability allow to operate in extremely Narrow spaces, normally inaccessible to other cranes of the same class.

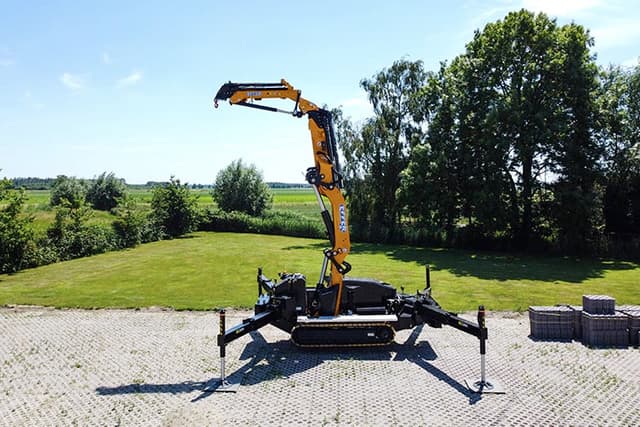

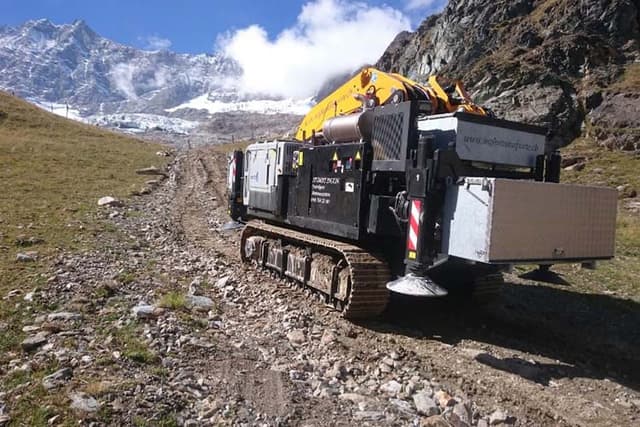

The outriggers of CWE 525 Range, Provided With Cross Beams System, confer to the Crane Chassis an incomparable torsion resistance always keeping extremely Compact the machine Dimensions in rest position. The outriggers cylinders, solid with extended stroke, Simplify the Crane Endurance on strongly steep grounds.
A large Employment of high enervation limit special steels, such as STRENX 1300, allow to limit the weight in order to take advantage of the performance; especially with more external loads on the top of the Jib.
The generous ground clearance angle permit to load the machine as well on truck with short ramps; simplifying the manoeuvres and optimizing loading time.
“Short ray” Performance

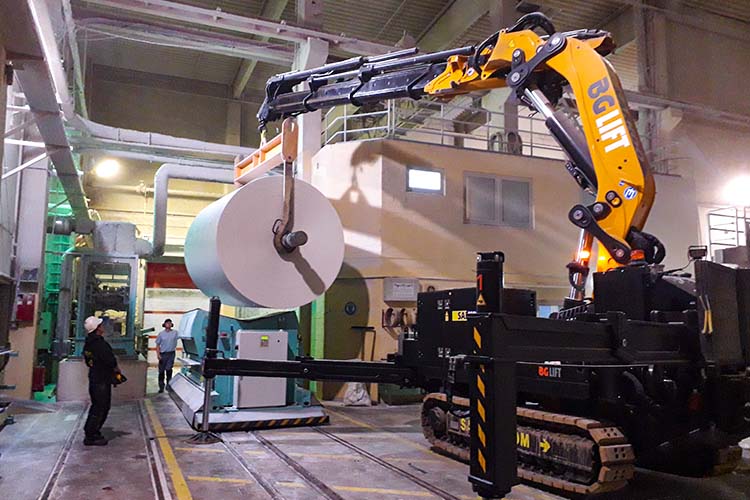

CWE 525 is Built with very low barycentres which, combined to the Cross Beams Geometry, Permit to develop the full power and cover heavy and voluminous loads (Machines Tools and other) operating close to the load in reduced spaces and heights.

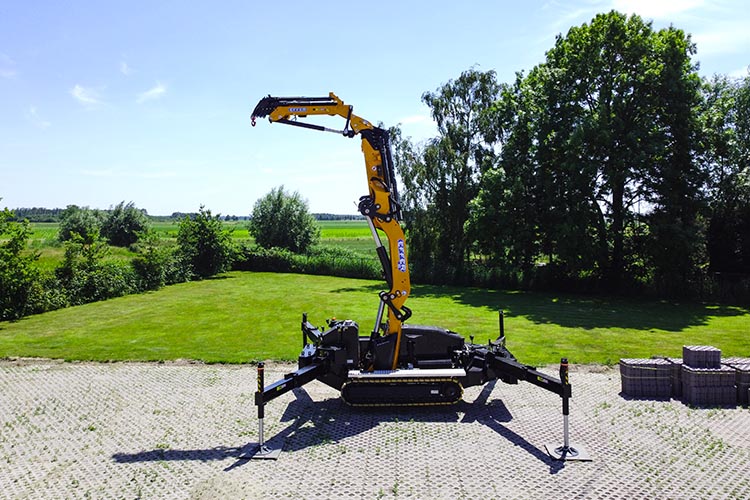

Load Limit Stability
The integrated control system give to the Crane infinite Stabilization possibilities, Automatically upgrading the load limiting device to the situation determined by the position of each outriggers; permitting the operator to completely work in safety conditions and, simultaneously, setting configurations unthinkable until today.
Positive Angle for Hard Access

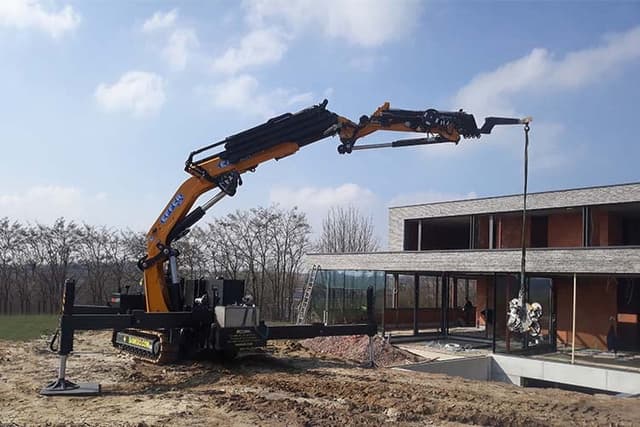

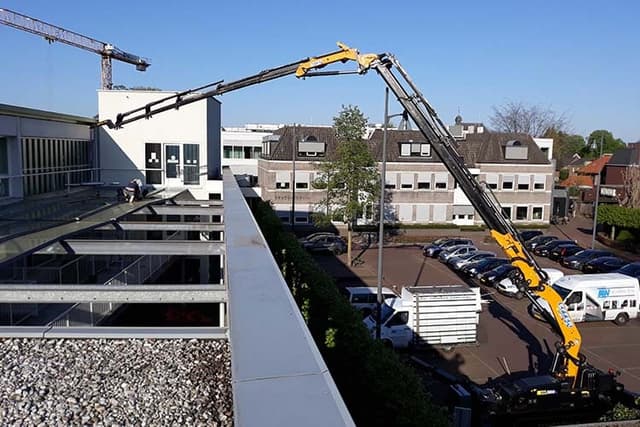

The second Articulated Telescopic Boom and the Hydraulic Jib have angular operating system respectively of 15° and 20° Over the Horizontal alignment of the boom. This situation allow to operate inside buildings and give the possibility to overcome obstacles such as lofts, front door and Beams.
- Hydraulic jib 6S with multifaster coupling
- Hydraulic 1,900 kg. winch
- 3 phase 400V 15 KW inverter Electric drive
- Non marking blocks on the tracks
- Hoist block and discs for 4 wire warp
- 2 Man basket with EN280
- Lighting on crane and undercarriage
- Tool box 1,500x400x600
- Crane in customized company colors
- RT Crawler version
- Non marking tracks (RT Crawler version)
Aerial Work Platform and minicrane in one?
The innovative Mini Crane brand Bg Lift makes that possible.
All models can (optionally) be equipped with a 2 person basket. This allows you to combine a mini crane and aerial platform in one machine.
These compact cranes are designed with EN280 approval. This is a unique feature of these mini cranes. Not investing in 2 machines but in 1. Who wouldn’t want that?
