Max. 400 kg

4 Suction units

360°

Standard version

  • lifting capacity 400 kg
  • battery operating system
  • 4 suction pads d.310 mm + four extension arms
  • manual 90° tilt with automatic stop
  • manual 360° rotation, with possibility of automatic stop or continues rotation
  • pad spread from mm 863×666 to mm 1535×1100
  • in line position mm 1770×310
  • dual vacuum circuit EN13155
  • Always available
  • Fast delivery time
  • Warranty
  • Customer service

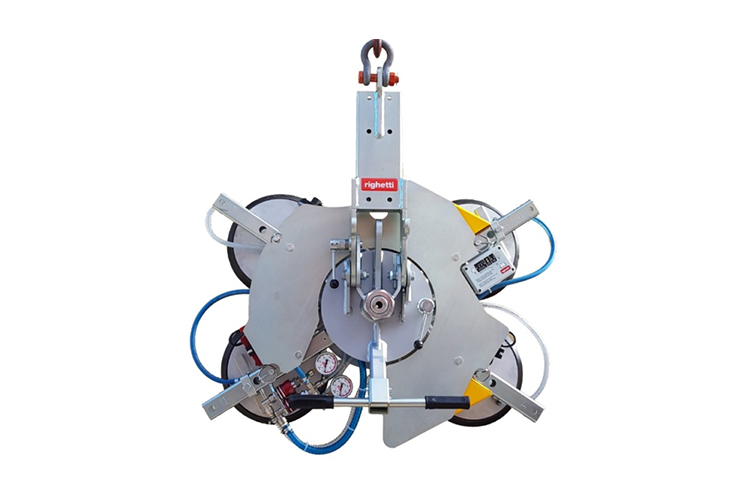

Righetti VB4 RCMBM Pro

Description

The VB4 RCMBM-PRO is version of standard VB4 vacuum glass lifter but complete of extension arms for bigger pad spread. Thanks to extension arms, the suction cups have four difefrent positions from mm 863×666 to mm 1535×1100.
The four suction cups can be put also in in-line position and allow the lifter to handle narrow glass.

Vacuum glass lifter VB4 RCMBM is battery powered by rechargeable batteries that, if necessary, may be easily removed and quickly replaced.
VB4 is specific vacuum glass lifter for construction site use with dual vacuum circuit according to EN13155.

The VB4 RCMBM vacuum lifter features manual tilt and manual 360 degree rotation. Its compact and flat design permit that VB4 could work also behind scaffoldings.

Optional

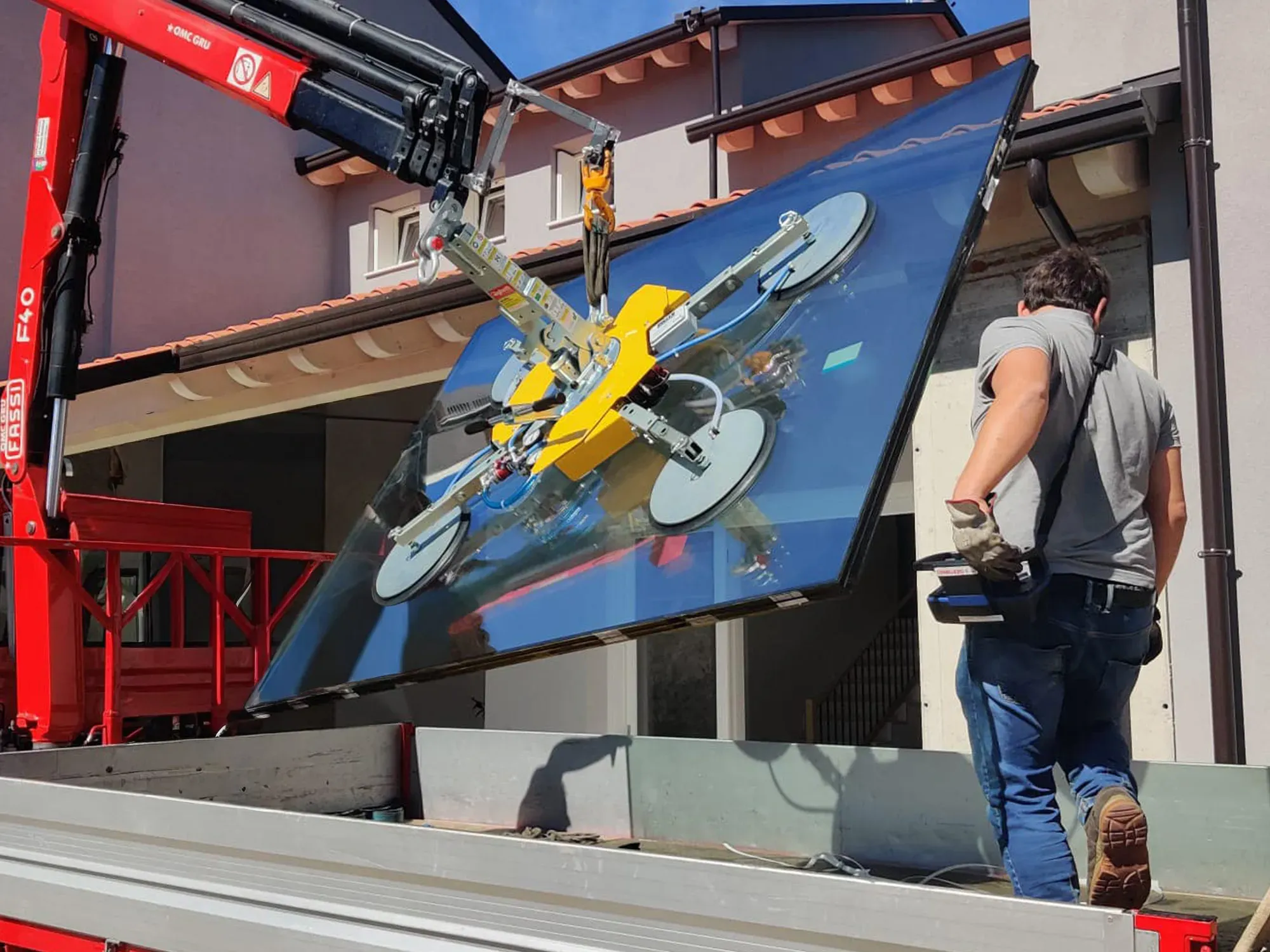

VB4 RCMBM D4 Pro
  • lifting capacity 600 kg
  • battery operating system
  • 4 suction pads d.390 mm + four extension arms
  • pad spread from mm 1019×795 to mm 1615×1180
  • in line position mm 1850×390
  • manual 90° tilt with automatic stop
  • manual 360° rotation, with possibility of automatic stop or continues rotation
  • dual vacuum circuit EN13155
