Standard version
- Engine: Kohler
- Fuel: Diesel
- Power: 42 Kw (57 hp)
- Driving Speed: 17 km / h
- Weight: 1970 kg
- Maximum lifting capacity: 1400 kg
- Working lifting height: 3.1 m
Available from: € 34.720,-
- Always available
- Fast delivery time
- Warranty
- Customer service
Avant 700 Compact loaders
Description
EXCELLENT VISIBILITY
In the development of all Avant machines the focus has been on excellent visibility. Whether the machine is equipped with a cab enclosure or safety ROPS, the operator has to see the whole machine; from front to back and both sides.
The cab enclosure, built to the front frame of the machine, has an very important role with visibility. It provides the best sight to the attachment and the work being performed. The most efficient work is achieved when the driver is sitting as near to the attachment as possible.
AVANT’s eccentric telescopic boom is a third factor to visibility. The telescopic boom is offset from the center line of the machine and provides exceptional visibility in front of the operator in every position of the boom.
STABILITY
All AVANT Loaders have a rigid articulation joint. This is the single most important factor in helping to achieve excellent stability in all situations. In addition to the articulation joint, the center of gravity is as low as possible to increase the stability of the loader.
SAFETY FRAME
There is a ROPS-certified safety canopy and FOPS-certified safety roof standard on every 700 series loader.
LOAD SENSOR
The AVANT 700 series is equipped with a load sensor as standard equipment to provide an audible warning if the rear wheels are about to lift off the ground. This preemptive warning gives the operator more time to react in the event of the machine becoming unstable.
LIFTING CAPACITY
Product development with Avant 700 series has been strongly focused in to lifting capacity. Larger outside dimensions naturally give better balance to the lifting weight. The lifting capacity with the 700 series is even 1600 kg and the maximal breakout force is even 35% better than in the 600 series. This is how the larger dimensions are fully utilized.
SPEED
The new AVANT 760i model is equipped with the most modern driving technique allowing the loader to reach speeds up to 26 km/h. The AVANT 760i is able to achieve 20 % more engine output, 40 % more torque and 20 % less fuel consumption than Avant 750.
The speed of the model AVANT 750 is even 24 km/h. This speed enables to use the 750 loaders effectively also in property maintenance in the cities.
The speed of AVANT 745 is 15 km/h, which is enough while working in smaller areas or construction sites.
COMFORT
Avant 700 series wheelbase is 30 inches longer compared to the 600 and 500 series. Also slightly larger wheel size calms driving and increases comfort, especially at higher speeds. Other options, accessories and different cabin levels increase comfort as well.
Specifications – AVANT 755
lifting capacity
1400
kg
ENGINE POWER
57
hp diesel
LIFT HEIGHT
3.1
m
Speed
17
km/h
- Engine: Kohler KDI 1903 TCR
- Power: 42 kW (57 hp)
- Fuel: Diesel
- Length: 3060 mm
- Width: See table
- Height: 2060 mm
- Weight: 1970 kg
- Standard tires: 320 / 60-12 traction
- Transmission, drive: hydrostatic
- Oil supply extra: 80 l / min
- hydraulic function
- Turning circle inside / outside: 1240/2780 mm
- Max. lifting height: 3100 mm
- Tipping load: 1400 kg
- Max. breakout load (50 cm): 1700 kg
Dimensions
Specifications – AVANT 760
lifting capacity
1500
kg
ENGINE POWER
57
hp diesel
LIFT HEIGHT
3.1
m
Speed
26
km/h
- Engine: Kohler KDI 1903 TCR
- Power: 42kW (57 hp)
- Fuel: Diesel
- Length: 3060 mm
- Width: See table
- Height: 2110 mm
- Weight: 2100 kg
- Standard tires: 400 / 50-15 traction
- Transmission, drive: hydrostatic
- Oil supply extra: 80 l / min @ 225 bar
- hydraulic function
- Turning circle inside / outside: 1240/2780 mm
- Max. lifting height: 3100 mm
- Max. lifting capacity: 2100 kg
- Tipping load: 1400 kg
- Max. breakout load (50 cm): 1700 kg

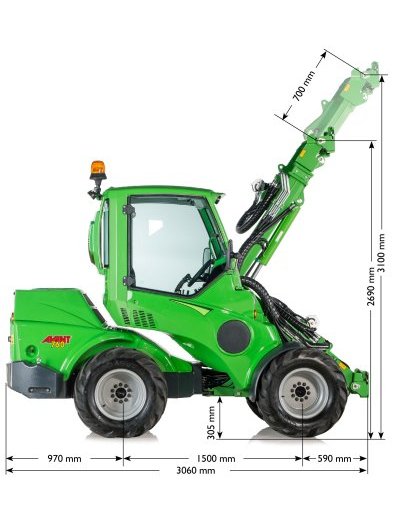

Dimensions
